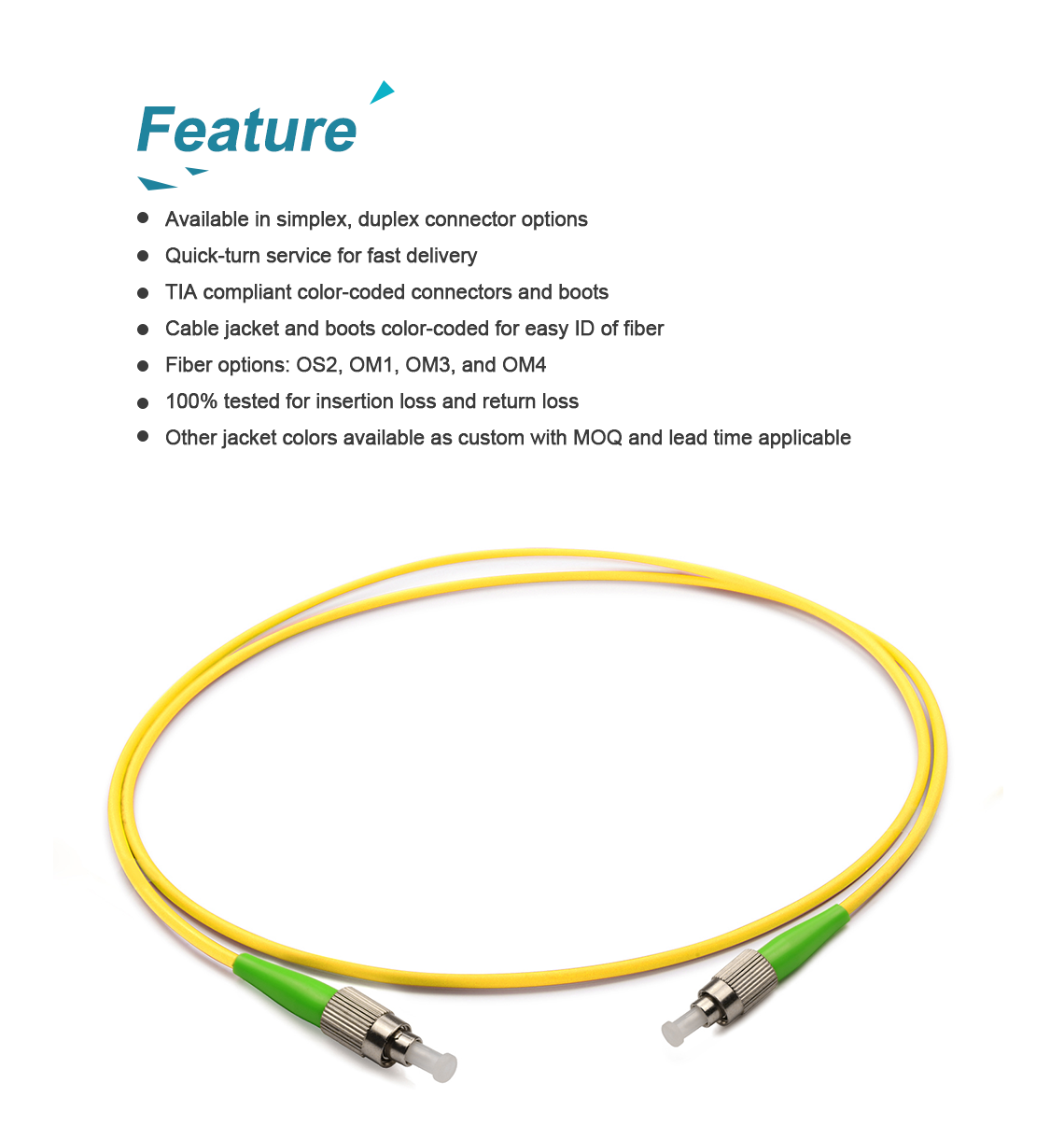

Fiber Optic Patchcord FC/APC-FC/APC Singlemode G657A1 Simplex LSZH/PVC 3.0mm 1 m PVC
P/N : FP-FC/APC-FC/APC-G657A1-SX-PVC-3.0-1M
Jacket material:OFNR,LSZH ,OFNP,PVC
Fiber patch cord structure:Singlemode
Connectors:0.9mm,2.0mm,3.0mm
Compatible with ROHS
The SC connector is becoming increasingly popular in single mode fiber optic telecom and analog CATV, field deployed links.
The high precision, ceramic ferrule construction is optimal for aligning single9mode optical fibers.
The connectors’ outer square profile combined with its push pull coupling mechanism, allow for greater connector packaging density
in instruments and patch panels. The keyed outer body prevents rotational sensitivity and fiber endface damage.
Multimode versions of this connector are also available.
The typical insertion loss of the SC connector is around 0.3 dB.
| Characteristic | SM , MM |
| Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 |
| Diameter(mm) | 0.9,2.0,3.0 |
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Operation temperature | -40~+80 |
Applications: FTTX,LAN communication
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
FAQ
Q1. What about the price?
Re: We usually quote within 12 hours after we confirm the technical data of your products.
Q2. What's the payment method?
Re: We accept L/C, T/T, Western Union, MoneyGram, PayPal etc.
Q3. What’s your terms of payment?
Re: 30% in advance, and 70% before shipment
Q4. How to ship the items to me?
Re: Courier(DHL,TNT,FEDEX,UPS,EMS), Airfreight, Ocean Ship are available.
Q5. How long is your delivery time?
Re: The general delivery time is 5-7 days after order is confirmed, it depends on the order quantity.
Q6. Can you send me a free sample?
Re: Yes, we are willing to send free sample, if you would like to pay the shipping costs.
Q7. Do you accept OEM or ODM?
Re: Yes, we're factory, any your customized requirements we can do our best to help you realize.
